Product Description

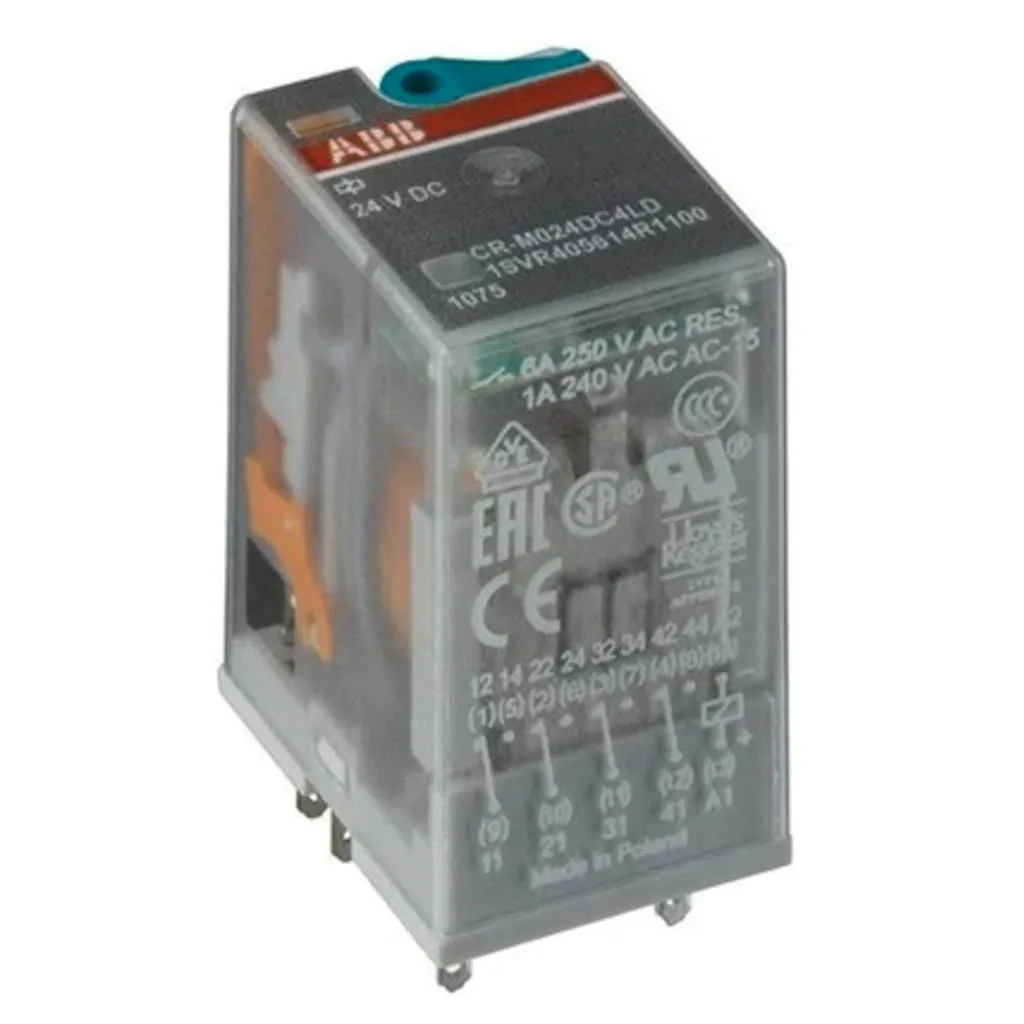

• This relay operates with a 12 to 220 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6 A
• The relay has an integrated blue test button for manual actuation and locking of the output contacts and an integrated LED
• Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories
• Function : Pluggable miniature interface relay CR-M
• Sub-Function : Relay with built in LED
• Output : 4 c/o (SPDT) contacts
• Output Signal : 250 V / 6 A
• Product Net Width : 21.2 mm
• Product Net Height : 35.6 mm
• Product Net Depth / Length : 27.5 mm
• Product Net Weight : 0.033 kg

Product Specification
