Product Description

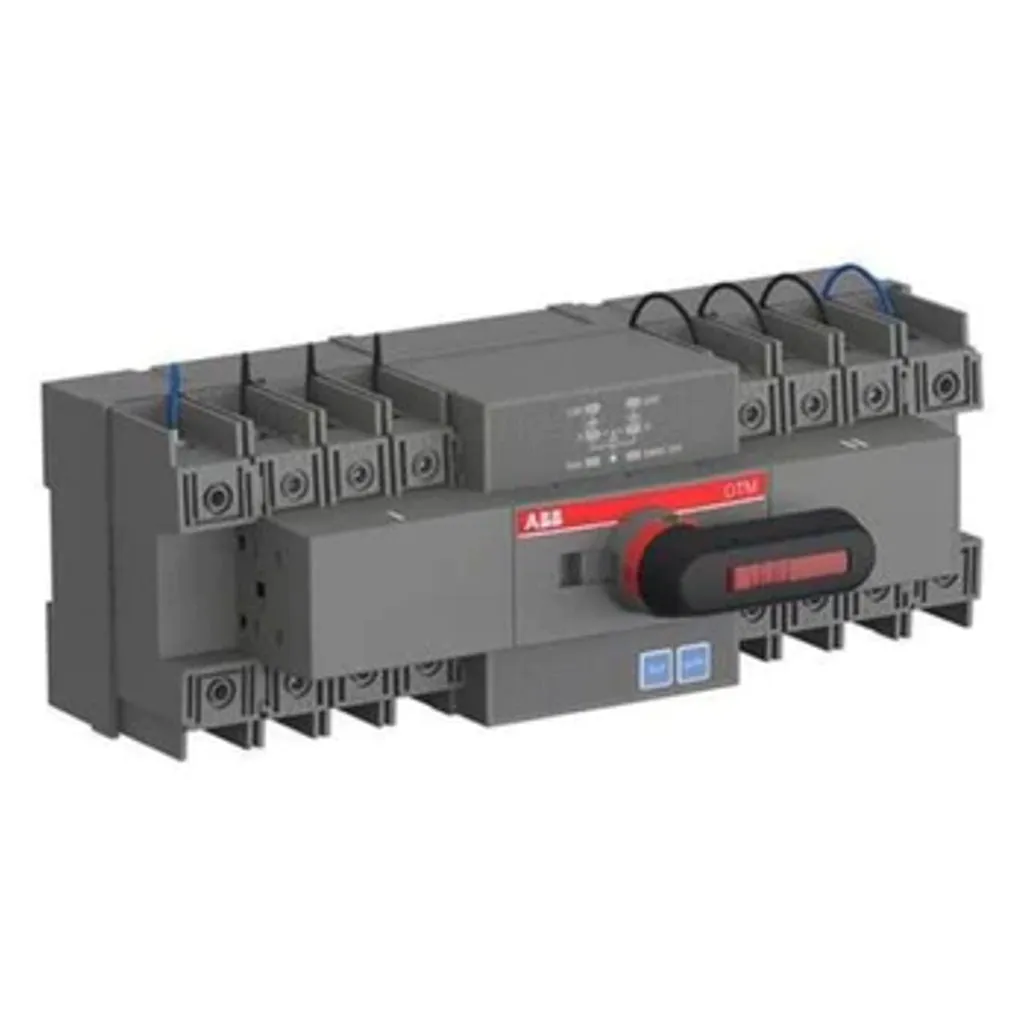

• Automatic transfer switches, I - O - II operation Supplied with bridging bars and direct mounted handle

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Rated Insulation Voltage (U_i) : 800 V

• Rated Short-time Withstand Current (I_cw) : for 1 s 2.5 kiloampere rms

• Motor Operational Voltage : 380…415 V AC

• Pollution Degree : 3

• Handle Type : Direct mounted handle

• Fourth Pole Type : Switched - Simultaneous Function

• Position of Line Terminals : Supplies on Top - Load on Bottom

• Controller Type : 20D

• Number of Poles : 4

• Product Net Height : 103 mm

• Product Net Depth / Length : 131 mm

• Product Net Weight : 2.00 kg
