Product Description
-

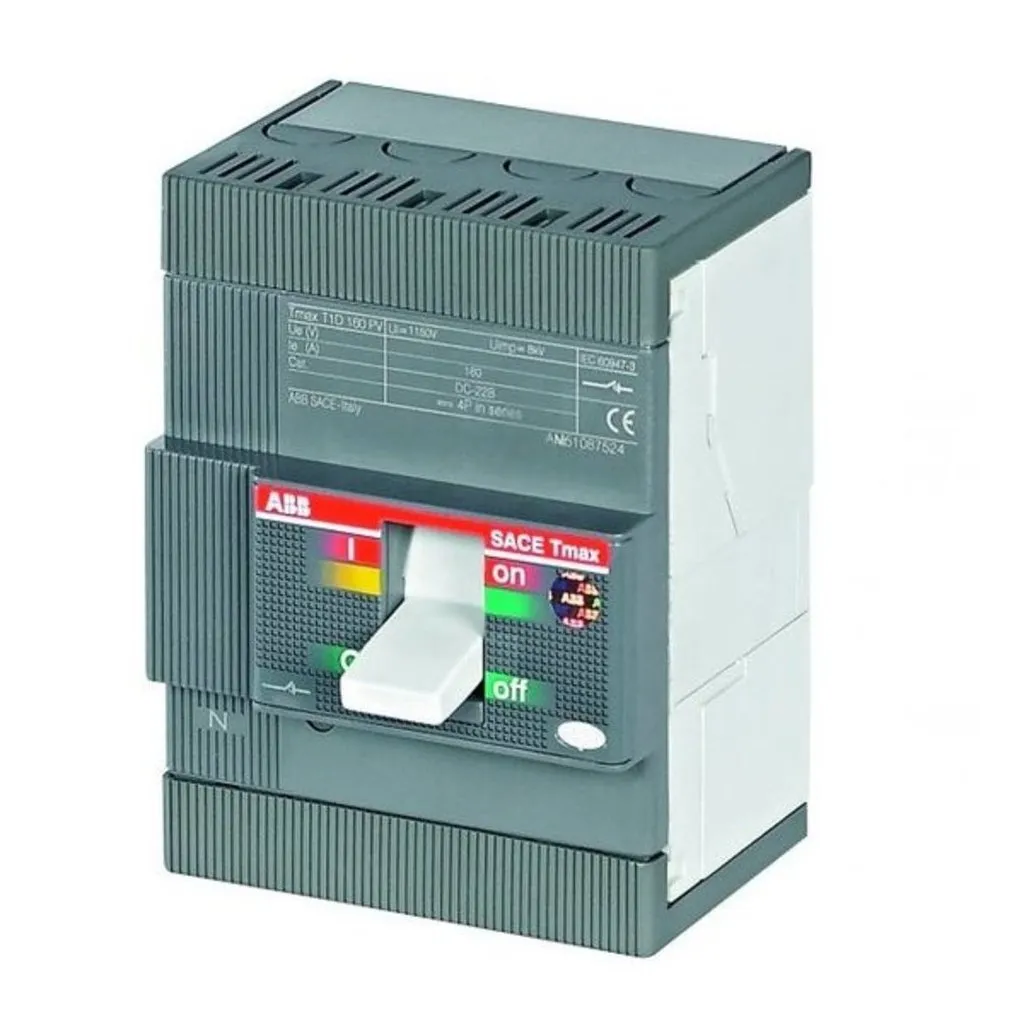

Tmax PV is the latest T Generation product up to 1600 A / 1100 V DC / 1500V DC
-
IEC 60947-3 certification
-
6 different sizes: from the compact T1 (which can be mounted on DIN rail) to the high-performance
-
T7, available in the two versions, with lever operating mechanism and motor operator
-
Rated insulation voltage up to 1150 V DC
-
excellent performance-dimensions
-
vast and complete range of accessories for all requirements
-
Complete remote control with MOE options
Product Specification
|
Rated Current (A) |
Product Type |
Product ID |
|
160 |
T1D/PV 160 4p F FC Cu 1100V DC |
1SDA069816R1 |
|
200 |
T3D/PV 200 4p F FC Cu 1100V DC |
1SDA069822R1 |
|
250 |
T4D/PV 250 4p F F 1100V DC |
1SDA069823R1 |
|
500 |
T5D /PV 500 4p F F 1100V DC |
1SDA069824R1 |
|
800 |
T6D/PV 800 4p F F 1100V DC |
1SDA069825R1 |
|
1250 |
T7D/PV 1250 4p F F 1100V DC |
1SDA069826R1 |
|
1250M |
T7D/PV 1250 4p F F M 1100V DC |
1SDA069827R1 |
|
1600 |
T7D/PV 1600 4p F F 1100V DC |
1SDA069828R1 |
|
1600M |
T7D/PV 1600 4p F F M 1100V DC |
1SDA069829R1 |
