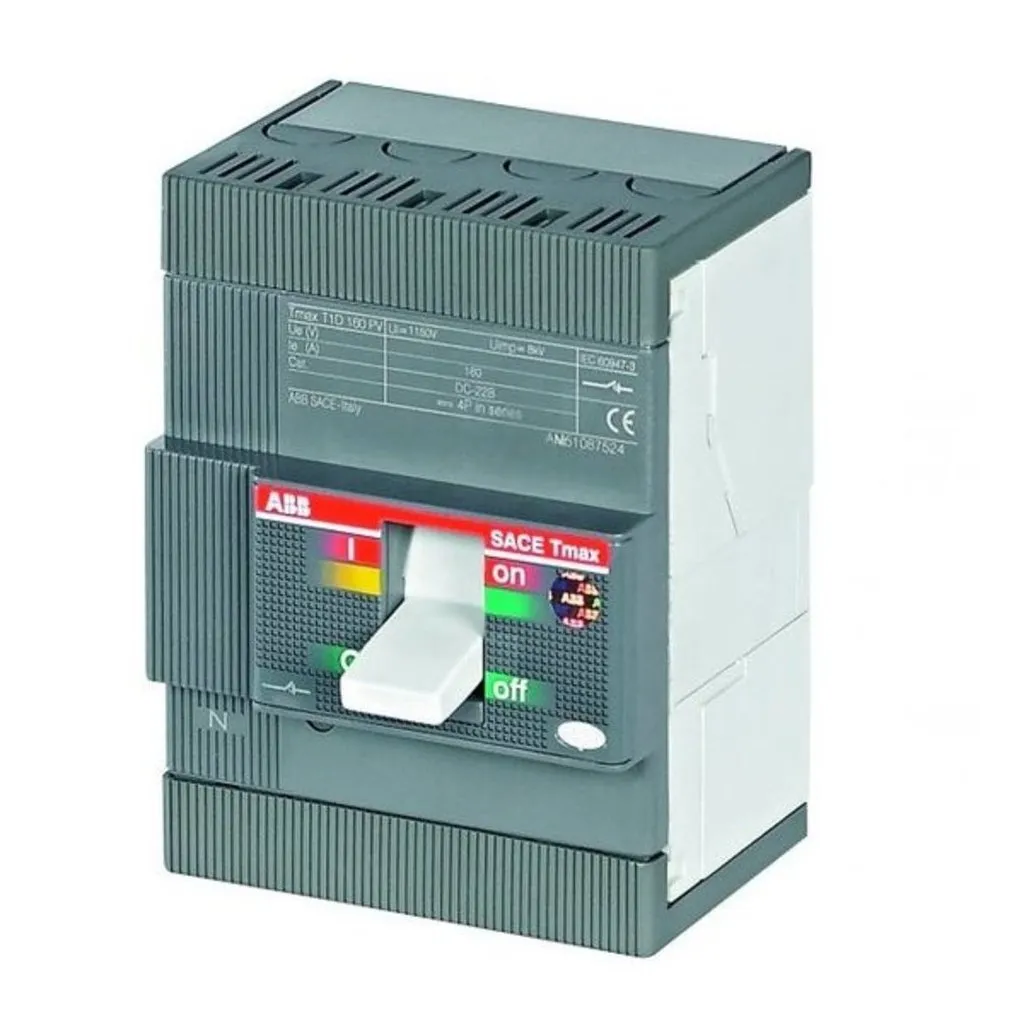

Product Description
-
Tmax PV is the latest T Generation product up to 1600 A / 1100 V DC / 1500V DC
-
IEC 60947-3 certification
-
6 different sizes: from the compact T1 (which can be mounted on DIN rail) to the
-
high-performance
-
T7, available in the two versions, with lever operating mechanism and motor operator
-
Rated insulation voltage up to 1500 V DC
-
excellent performance-dimensions
-
vast and complete range of accessories for all requirements
-
Complete remote control with MOE options
Product Specification
|
Rated Current (A) |
Product Type |
Product ID |
|
250 |
T4D/PV-E 250 4p F F 1500V DC |
1SDA073559R1 |
|
500 |
T5D/PV-E 500 4p F F 1500V DC |
1SDA076898R1 |
|
1250 |
T7D/PV-E 1250 4p F F M 1500V DC |
1SDA073560R1 |
|
1600 |
T7D/PV-E 1600 4p F F M 1500V DC |
1SDA073561R1 |
