Product Description
-

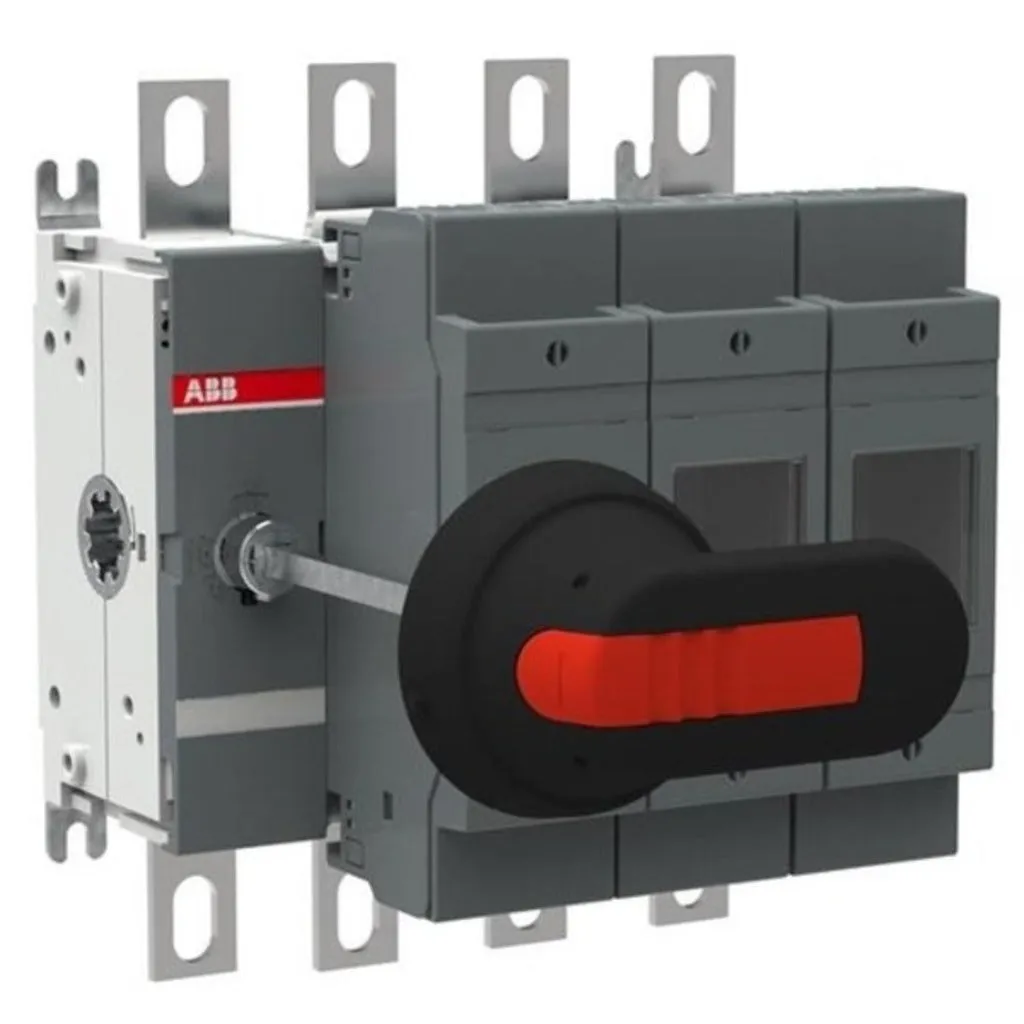

200A-800A SDF supplied with shaft and handle, Mechanism at the end of the switch fuse
-
Rated Impulse Withstand Voltage (Uimp) : 12 kV
-
Rated Insulation Voltage (Ui) : 1000 V
-
Rated Operational Voltage : 500 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms
-
Rated Conditional Short-Circuit Current (Inc) : (690 V) 80 kA
-
Pollution Degree : 3
-
Handle Type : Handle and shaft included
-
Switches Operating Mechanism : 03 (Left Side)
-
Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out
-
Fuse System : DIN
-
Operating Mode : Front Operated
-
Standards : IEC 60947-3
-
Mounting Type : Base mounting
-
Number of Poles : 3
-
Terminal Type : Lug terminals
Product Specification
|
Rated Cutrrent (A) |
Fuse Size |
Model |
Product Id |
|
200 |
0 |
OS200D03P |
1SYN022709R9500 |
|
250 |
0,1 |
OS250D03P |
1SYN022719R0090 |
|
315 |
0,2 |
OS315D03P |
1SYN953046P3001 |
|
400 |
0,2 |
OS400D03P |
1SYN022719R0250 |
|
630 |
3 |
OS630D03P |
1SYN022825R2830 |
|
800 |
3 |
OS800D03P |
1SYN022825R4880 |
