Product Details
＋
Product Description
-

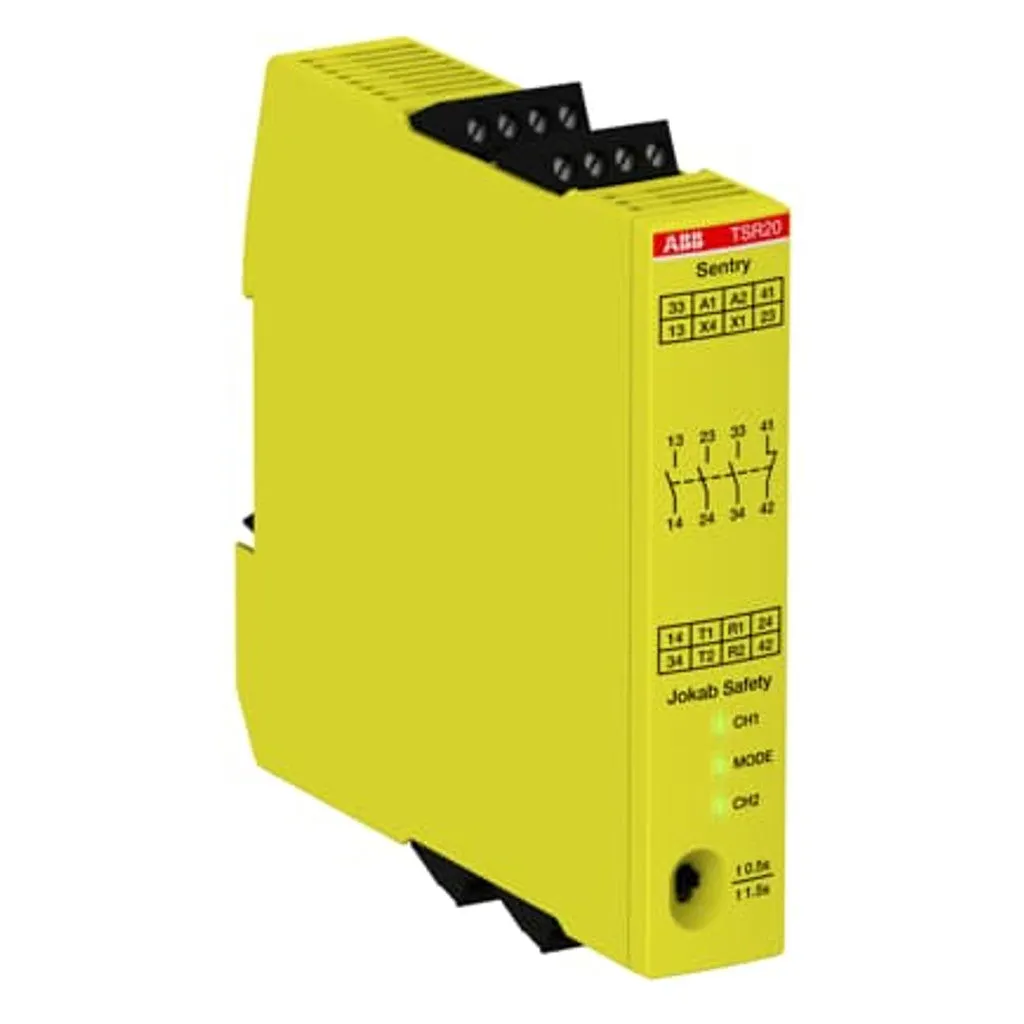

Safety expansion timer with delayed relay outputs 3NO 1NC, 24VDC power supply and screw terminals
-
For monitoring of safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs
-
OFF-delay time (0,5s or 1,5s) selectable by switch on the front
Product Specification
|
Brand |
ABB |
|
Product Type |
Safety Relay/Timer |
|
Product Code |
2TLA010061R0000 |
|
Model |
Sentry TSR20 |
|
Technical |
|
|
Degree Of Protection |
IP20 |
|
Performance Level (PL) |
Up to e |
|
Rated Control Supply Voltage (Us) |
24 V DC |
|
Dimensions |
|
|
Product Net Depth / Length |
120 mm |
|
Product Net Height |
120 mm |
|
Product Net Width |
22.5 mm |
|
Product Net Weight |
0.207 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
