Product Description
-

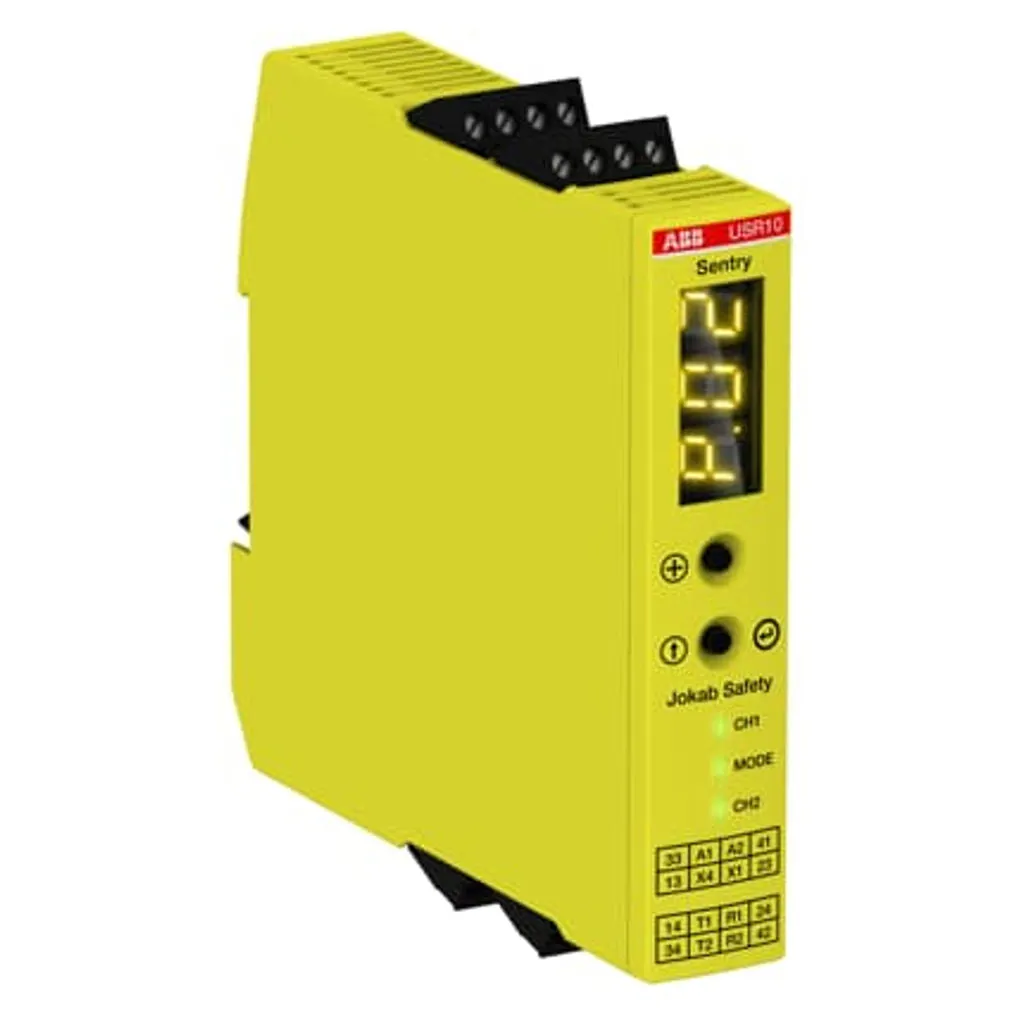

Universal safety relay/safety timer with delayable relay outputs 3NO 1NC, 24 VDC power supply and screw terminals
-
For monitoring of safety devices with contacts, 1 or 2 equivalent or antivalent channels, safety
-
devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers
-
Timer function 0-999 seconds with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset
-
A display on front facilitates configuration and troubleshooting by displaying error codes and error log
-
A custom configuration can be protected by password
-
Manual or automatic reset selectable
Product Specification
|
Brand |
ABB |
|
Product Type |
Safety Relay/Timer |
|
Product Code |
2TLA010070R0000 |
|
Model |
Sentry USR10 |
|
Technical |
|
|
Degree Of Protection |
IP20 |
|
Performance Level (PL) |
Up to e |
|
Rated Control Supply Voltage (Us) |
24 V DC |
|
Dimensions |
|
|
Product Net Depth / Length |
120 mm |
|
Product Net Height |
120 mm |
|
Product Net Width |
22.5 mm |
|
Product Net Weight |
0.229 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
