Description

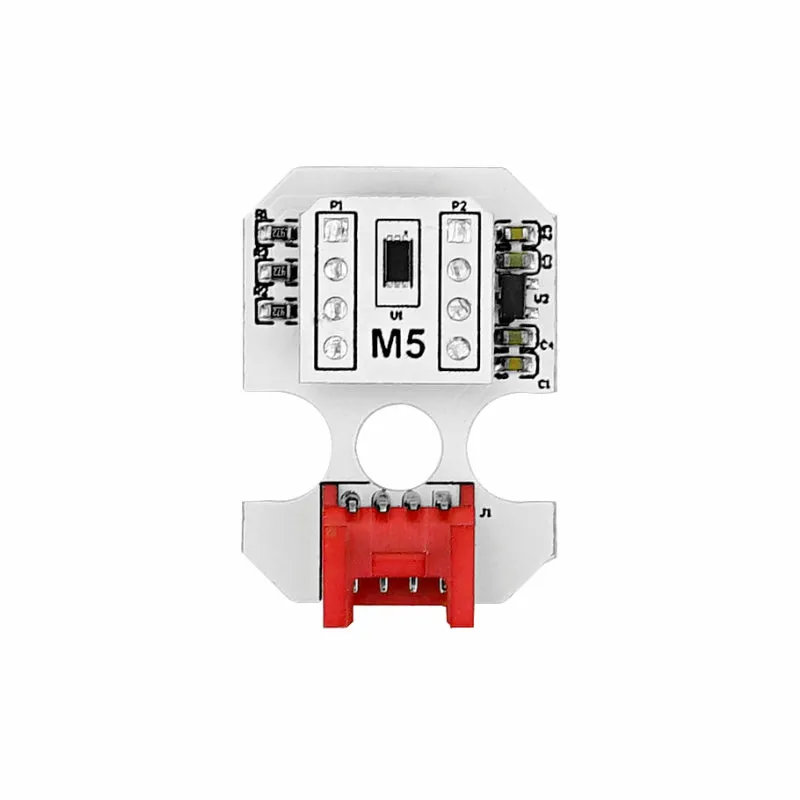

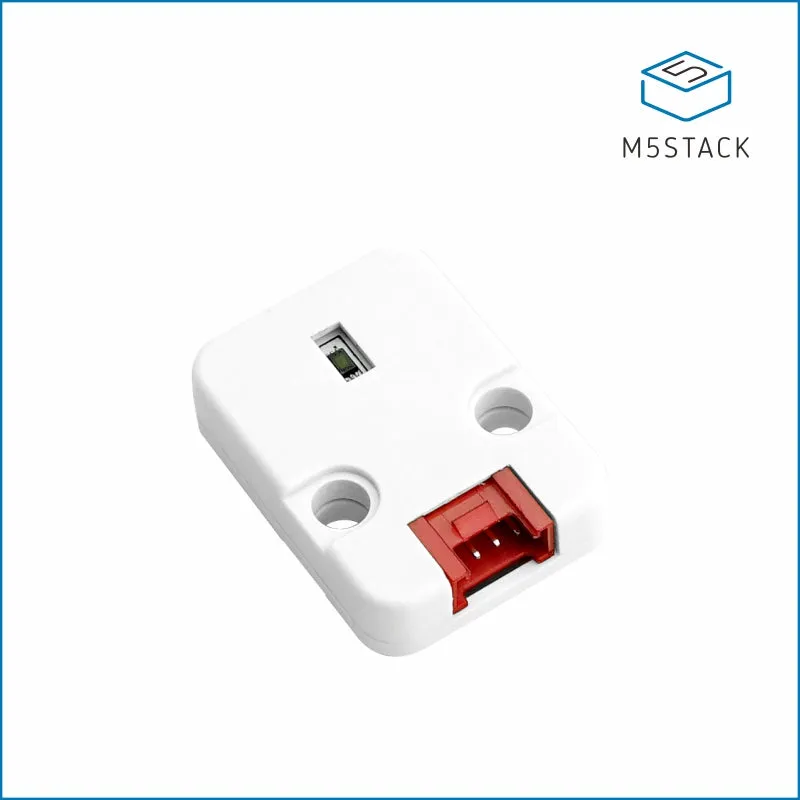

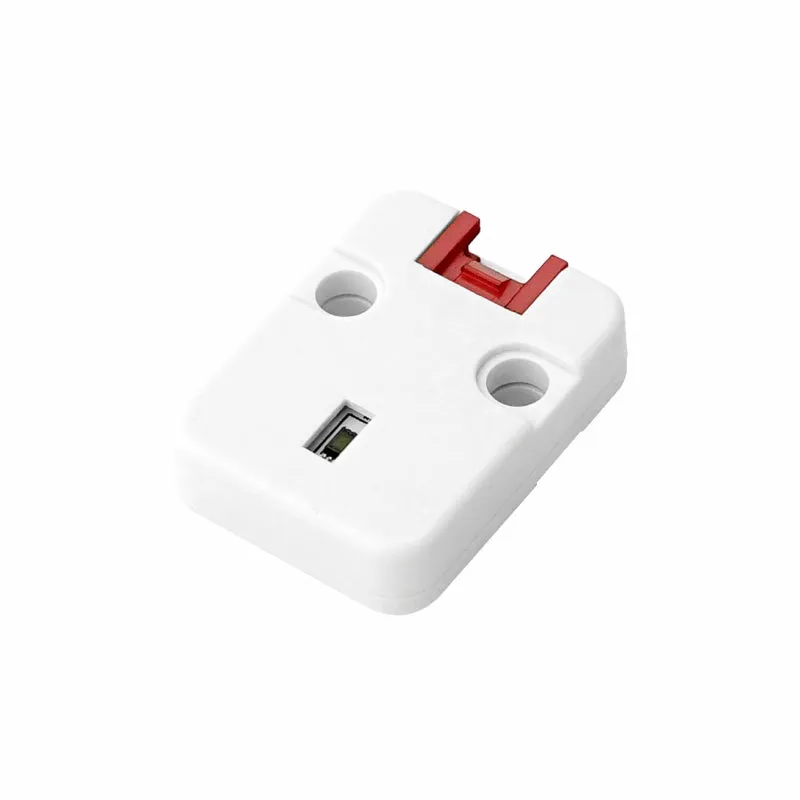

DLight Unit is a digital ambient light sensor module designed to provide accurate light sensing capabilities. It utilizes the BH1750FVI sensor, which communicates via the I2C interface, and features a 16-bit analog-to-digital converter (ADC).

The BH1750FVI sensor incorporated in DLight Unit offers wide-range sensitivity to light and provides high-resolution measurements. It can detect light intensity in a range from 1 to 65535 lux, allowing for precise and detailed readings. The 16-bit ADC ensures accurate conversion of analog light signals into digital values.

DLight Unit is compact in size, making it easy to integrate into various projects and devices. Its small form factor allows for flexible placement and installation, enabling it to be utilized in space-constrained environments. Additionally, DLight Unit is designed with low power consumption in mind. This ensures efficient operation and extends the battery life of the system in which it is incorporated. DLight Unit is suitable for various light sensing applications where accurate and reliable measurements of ambient light are required. It can be used in automatic lighting systems, smart homes, environmental monitoring devices, and other applications that rely on light intensity data.

Product Features

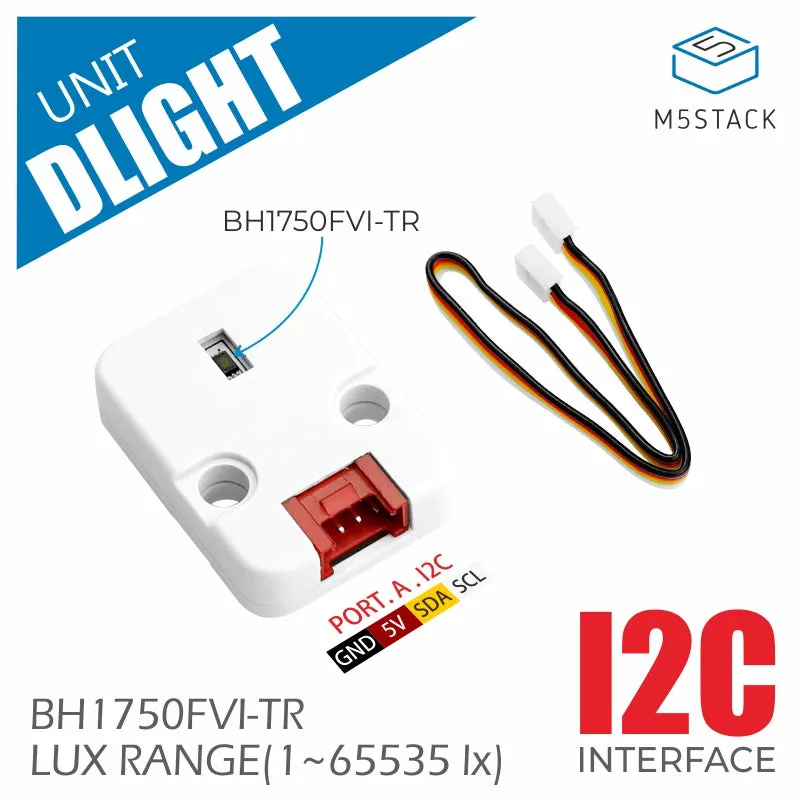

Support I2C interface (addr: 0x23)
Illumination digital conversion
Support light source variations (incandescent, fluorescent, halogen, white LED, sunlight, etc)
Wide Range LUX (1-65535 lx)

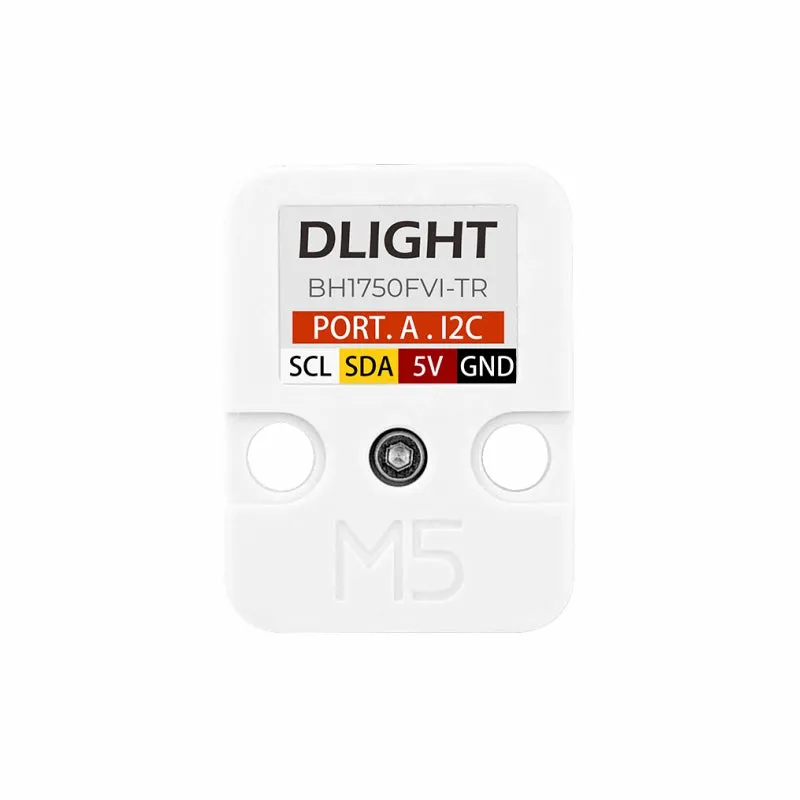

HY2.0-4P interface

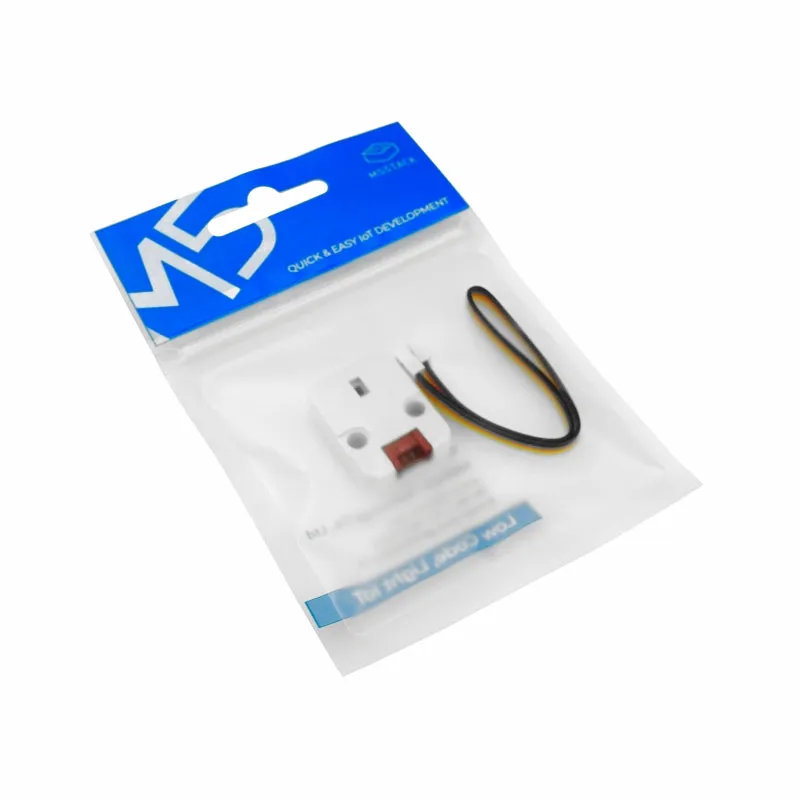

Include

1x DLight Unit

Applications

Smart Factory
Home Automation
Ambient light Sensing Scenario

Specification

Specifications	Parameters
Sensor Model	BH1750FVI
Illumination detection range	1-65535 lx
Communication interface	I2C communication interface (addr: 0x23)
Typical peak sensitivity wavelength	560nm
Working current	< 5V@143uA
AD conversion depth	16bit
Net weight	4.8g
Gross weight	10g

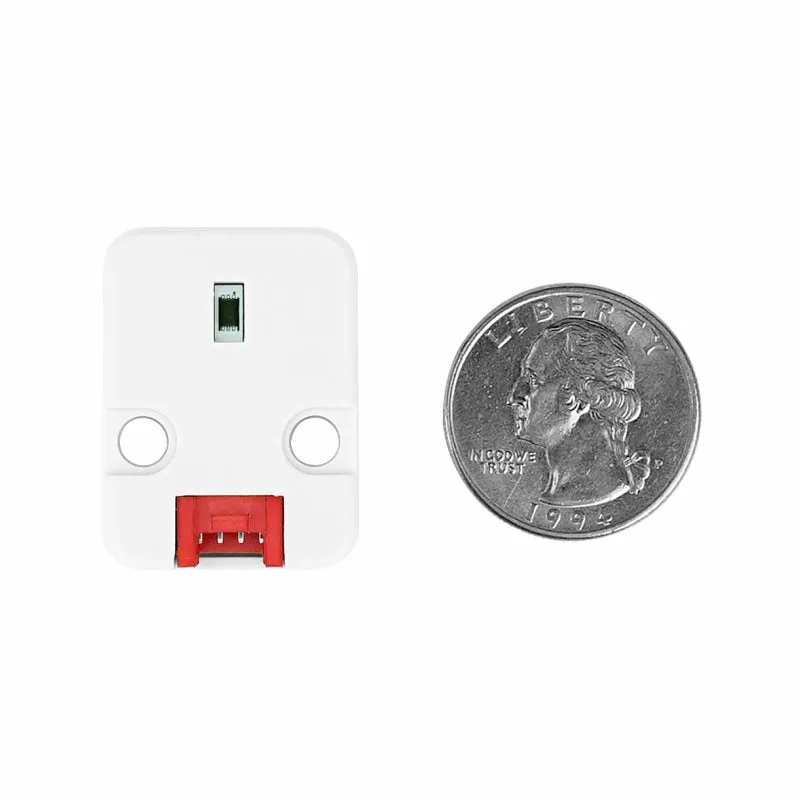

Product Size	32 * 24 * 8mm
Package Size	93 * 138mm
