Product Description
-

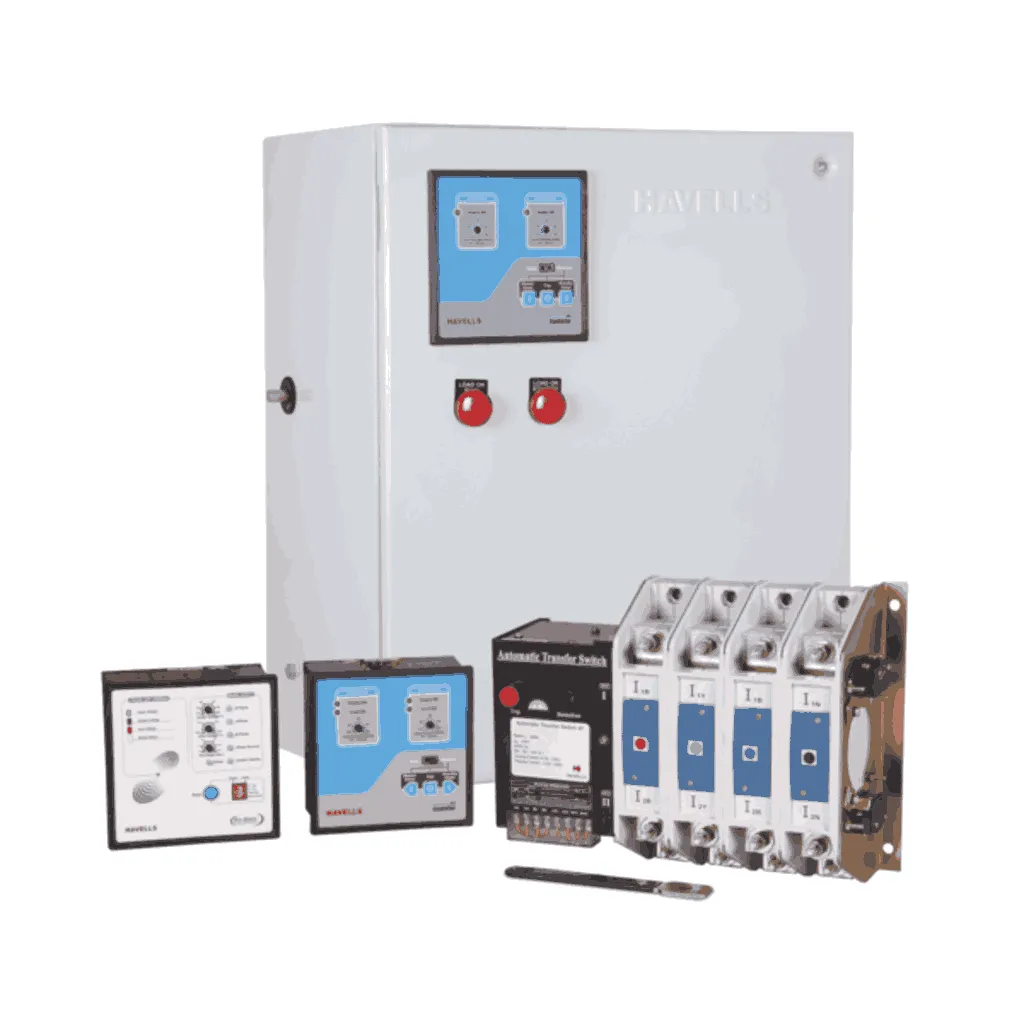

Automatic Transfer with time delay
-
Enable Automatic transfer from one source to other with Adjustable Time Delay
-
Positive indication through flag indicator
-
Indicates status of the source to which load is connected.
-
Automatic Transfer with time delay
-
Enable Automatic transfer from one source to other with Adjustable Time Delay
-
Positive indication through flag indicator
-
Indicates status of the source to which load is connected.
-
Compact & Light Weight
-
Offers economy of space and thereby reducing cost and panel size.
-
Liberal terminals
-
Facilitates termination of both Aluminium & Copper Cables
-
Provision of phase separator
-
Lends safety from phase to phase shorting & flashover
Product Specification
|
Standard conformity |
IS / IEC 60947-6-1 |
|
Rated operational voltage |
415 V AC / 110 V DC |
|
Insulation voltage |
1000 V |
|
Rated impulse voltage |
8 kV |
|
Utilisation category |
AC - 31 A |
|
Rated frequency |
50 Hz |
|
Operating altitude |
2000 m |
|
Humidity |
0 - 90% |
|
Rating range |
200 A - 315 A |
|
No. of poles |
Four Pole |
|
Type of execution |
With SS Enclousture |
|
Provision of primary protection |
With Primary Protection |
