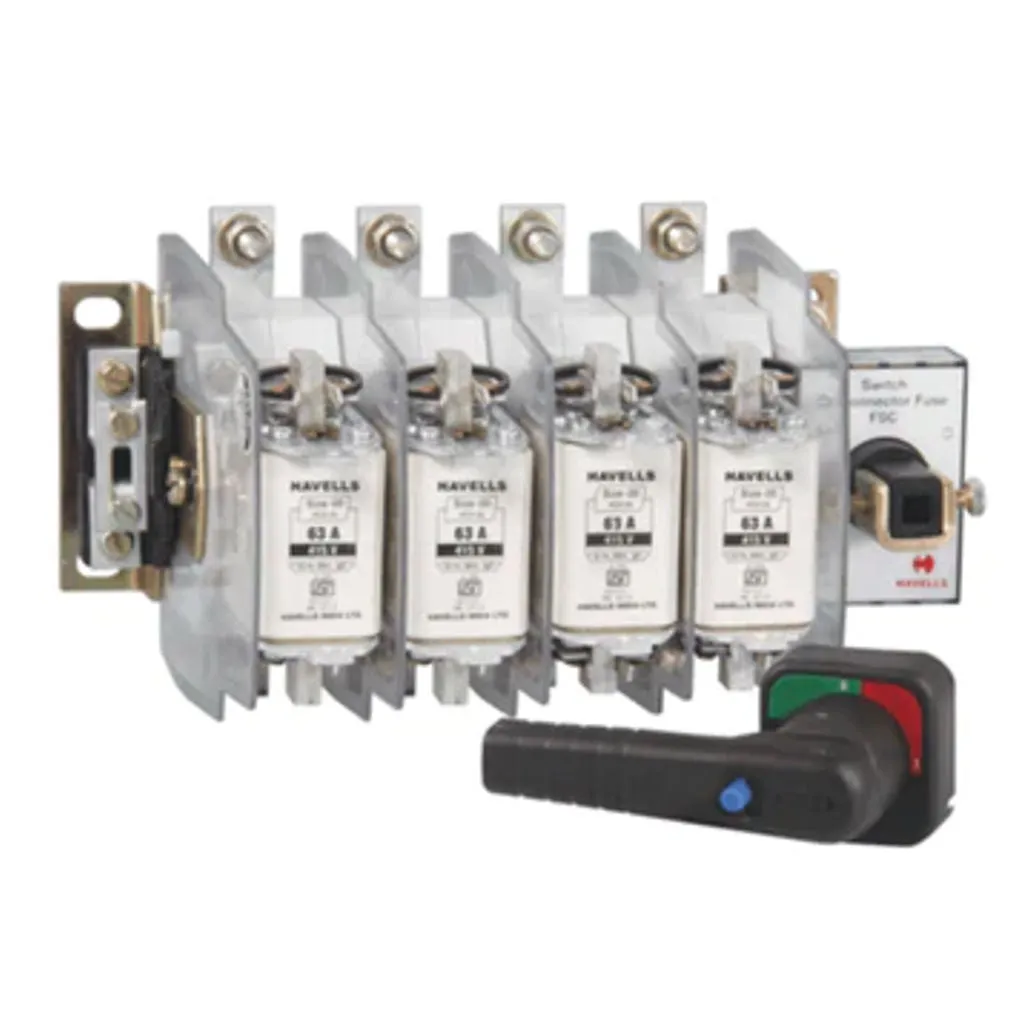

Product Description

Modular Construction & Compact Size

Offers economy of space thereby reducing cost and panel size.

Front operated, positive isolation switch mechanism

Provides Ease of operation and offers complete safety.

Multi Break Arcing Contacts per pole

Splits the arc into multiple arclets thereby extending life of Switch.

Detailed Features

Handle with Padlock, Door interlock and defeat facility

Enables safety during Operation / Non Operation of the Switch

Add-On Auxiliary Switch

It enables facility for signalling indications and interlocking in circuits

Choice of Usage

Available in OE / SS enclosure

Choice of Application

Suitable for both AC & DC application

Product Specifications

Basic-Features

Standard conformity: IS / IEC 60947-3

Rated operational voltage: 415V AC

Rated impulse voltage: 1000V AC

Utilisation Category: AC-23A

Rated frequency: 50Hz

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV
