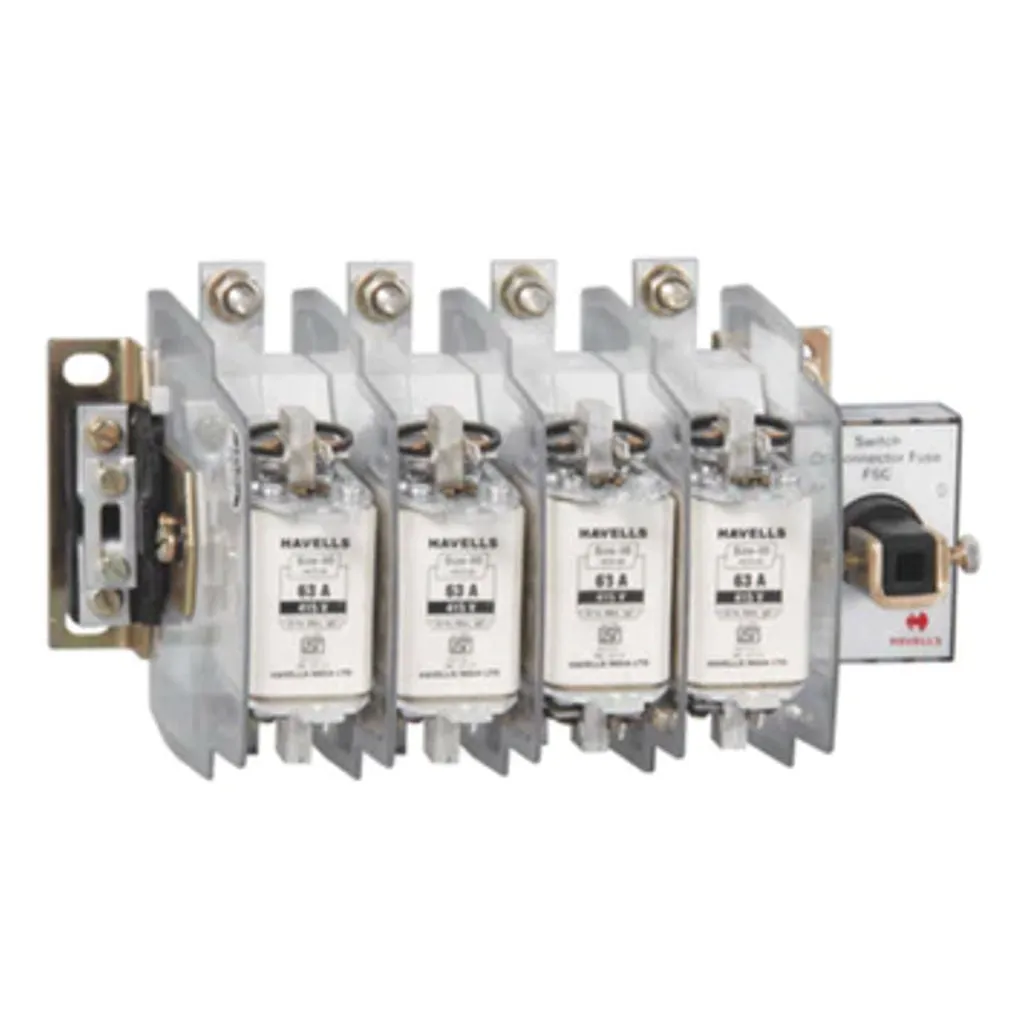

Product Description
Modular Construction & Compact Size
Offers economy of space thereby reducing cost and panel size.
Front operated, positive isolation switch mechanism
Provides Ease of operation and offers complete safety.
Multi Break Arcing Contacts per pole
Splits the arc into multiple arclets thereby extending life of Switch.
Detailed Features
Handle with Padlock, Door interlock and defeat facility
Enables safety during Operation / Non Operation of the Switch
Add-On Auxiliary Switch
It enables facility for signalling indications and interlocking in circuits
Choice of Usage
Available in OE / SS enclosure
Choice of Application
Suitable for both AC & DC application
Product Specifications
Basic-Features
Standard conformity: IS / IEC 60947-3
Rated operational voltage: 415V AC
Rated impulse voltage: 1000V AC
Utilisation Category: AC-23A
Rated frequency: 50Hz
Operating altitude: 2000 metres
Humidity: 0 - 90%
Rated impulse voltage: 8 kV
|
Rating Amp. |
In SS Encl. with 4 Fuses Cat. No. |
HBC Fuse Type |
|
160 |
IHFSFW4160 |
IHHTSF0160 |
|
160 |
IHFKFW4160 |
IHHCD01160 |
|
200 |
IHFSFW4200 |
IHHTSF0200 |
|
200 |
IHFKFW4200 |
IHHCD01200 |
|
250 |
IHFSFW4250 |
IHHTSF0250 |
|
250 |
IHFKFW4250 |
IHHCD01250 |
|
320 |
IHFSFW4320 |
IHHTSK0315 |
|
320 |
IHFKFW4320 |
IHHCD02315 |
|
400 |
IHFSFW4400 |
IHHTSMF400 |
|
400 |
IHFKFW4400 |
IHHCD02400 |
|
630 |
IHFSFW4630 |
IHHTLM0630 |
|
630 |
IHFKFW4630 |
IHHCD03630 |
|
800 |
IHFSFW4800 |
IHHTLM0800 |
|
800 |
IHFKFW4800 |
IHHCD03630 |
