Product Details
＋
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
|---|---|
| Mic/line/guitar | 4 x XLR/TRS "combo jack" mic/line/Hi-Z guitar inputs Independent preamp gain, 48V phantom power and monitor switch for each input |
| Analog inputs | 2 x 1/4" line in |
| Analog outputs | 4 x 1/4" TRS line out (balanced, DC coupled) 2 x 1/4" TRS stereo headphone with independent volume |
| Computer I/O | 1 x USB-C 2.0 audio class compliant Compatible with USB Type A host (*see power below) USB C-to-C and C-to-A cables included |
| MIDI I/O | 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host |
| Headphones | 2 x 1/4" TRS stereo headphone with independent volume 1 x 3-4 switch for optional monitoring of Line Out 3-4 |
| Phantom power | 4 x individual 48V |

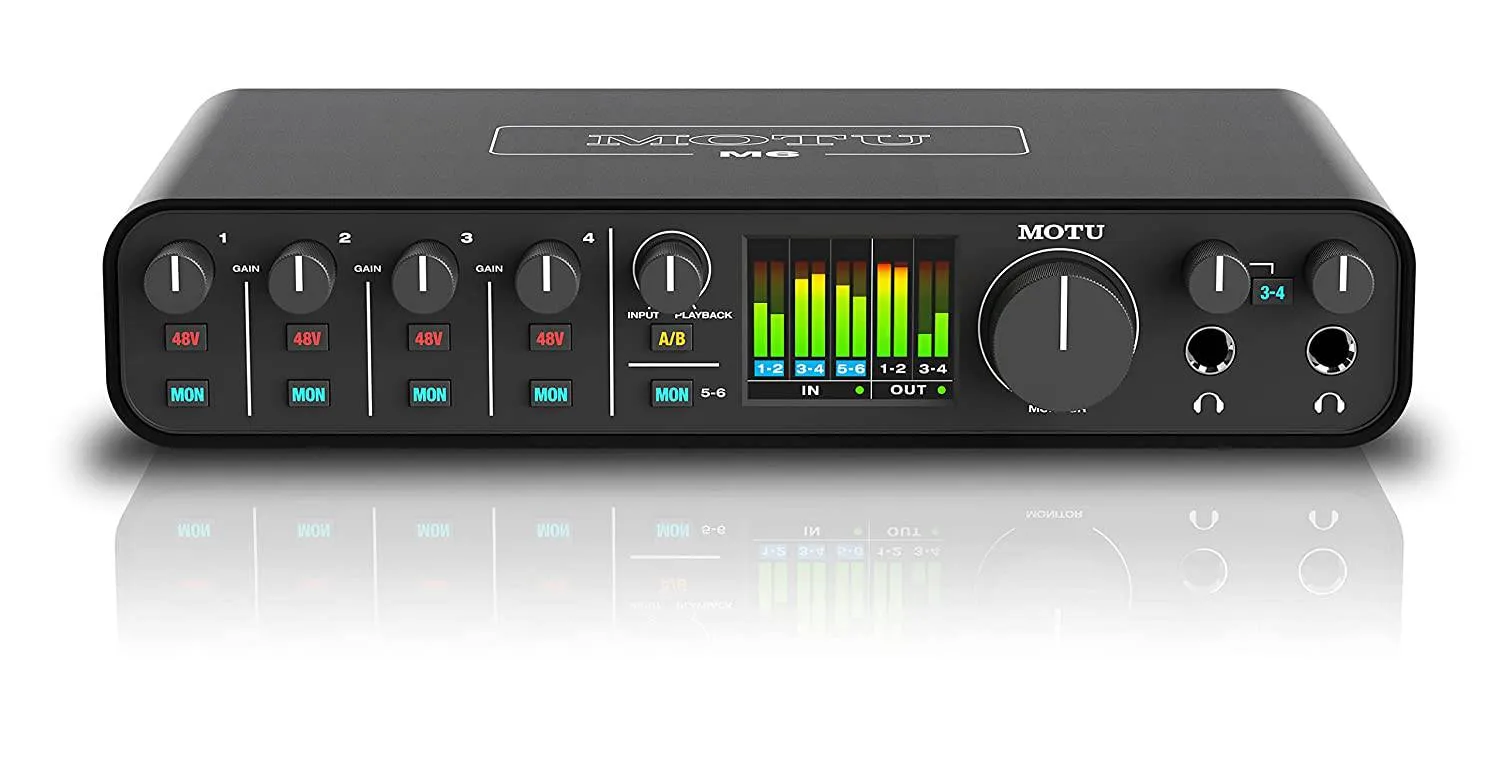

| Front panel | 2 x 1/4" TRS headphone output 1 x potentiometer • monitor vol 2 x potentiometer • phone vol 1 x potentiometer • input monitor mix 4 x potentiometer • mic/line/guitar input gain 11 x switches • (4) 48V, (5) MON, (1) A/B and (1) 3-4 160 x 120 pixel full-colored LCD with input and output level meters |
| Power | Bus-powered through USB* Optional multi-blade international 15V DC power adapter (included) *USB bus power available with USB-C hosts only. For other hosts, use the included DC power adapter. For iOS devices with a Lightning port, an Apple Lightning to USB3 Camera Adapter is required (sold separately). |
| Dimensions and weight | (width x depth x height, enclosure only) 9.21 x 4.75 x 1.8 inches 23.4 x 12.0 x 4.57 cm 2.15 lbs / 0.975 kg |
System Requirements
| Mac System Requirements | Intel Core i3 Mac or faster (including Apple silicon Macs) 4 GB RAM; 8 GB or more recommended macOS version 10.11 or later (Optional driver requires 10.13 or later) Available USB port A large hard drive (at least 500 GB for recording) |
|---|---|
| Windows System Requirements | 1 GHz Pentium-based PC compatible or faster 2 GB RAM; 4 GB or more recommended Windows 10 or later (x64 only) Available USB port A large hard drive (at least 500 GB for recording) |
| Class-Compliant Support | USB audio class compliant for plug-and-play operation on Mac or iOS (no driver required) |
| Included Software | MOTU Performer Lite Ableton Live Lite 11 6 GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU |
