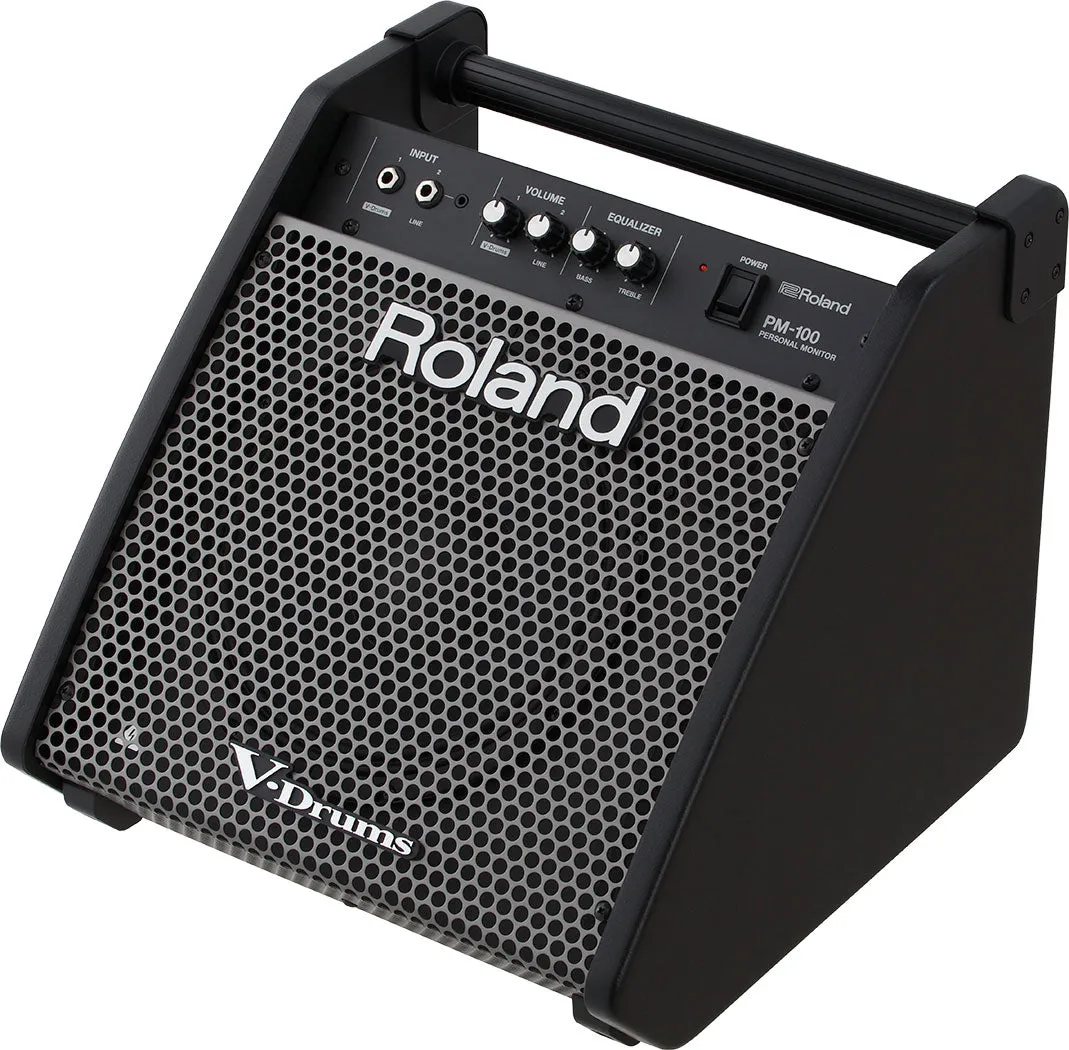

HIGH-RESOLUTION SOUND MONITORING, FINE-TUNED FOR ROLAND’S V-DRUMS
Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.
SPECIFICATIONS
| Rated Power Output |
80 W |
| Nominal Input Level |
V-Drums INPUT: -6 dBu (10 k ohms) |
| Speaker |
25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1 |
| Controls |
POWER switch |
| Indicators |
POWER |
| Connectors |
V-Drums INPUT jack: Stereo 1/4-inch phone type |
| Power Consumption |
36 W |
| Accessories |
Owner's manual |
SIZE AND WEIGHT
| Width |
388 mm 15-5/16 inches |
| Depth |
407 mm 16-1/16 inches |
| Height |
354 mm 13-15/16 inches |
| Weight |
13.5 kg 29 lbs 13 oz |
