Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PT 4X1-24DC-ST |
| Approvals | UL Listed, cUL Listed, cULus Listed, UL Listed, EAC, EAC, DNV GL |
| Configuration | Two-Section, Divisible |
| Current, Surge | 20 kA |
| Dimensions | 45mm L x 17.7mm W x 52mm H |
| For Use With | Data/Comm |
| IP Rating | IP20 |
| Mounting Type | Socket Mount |
| Number of Conductors | 8 |
| Operating Temperature | -40 to 85 °C |

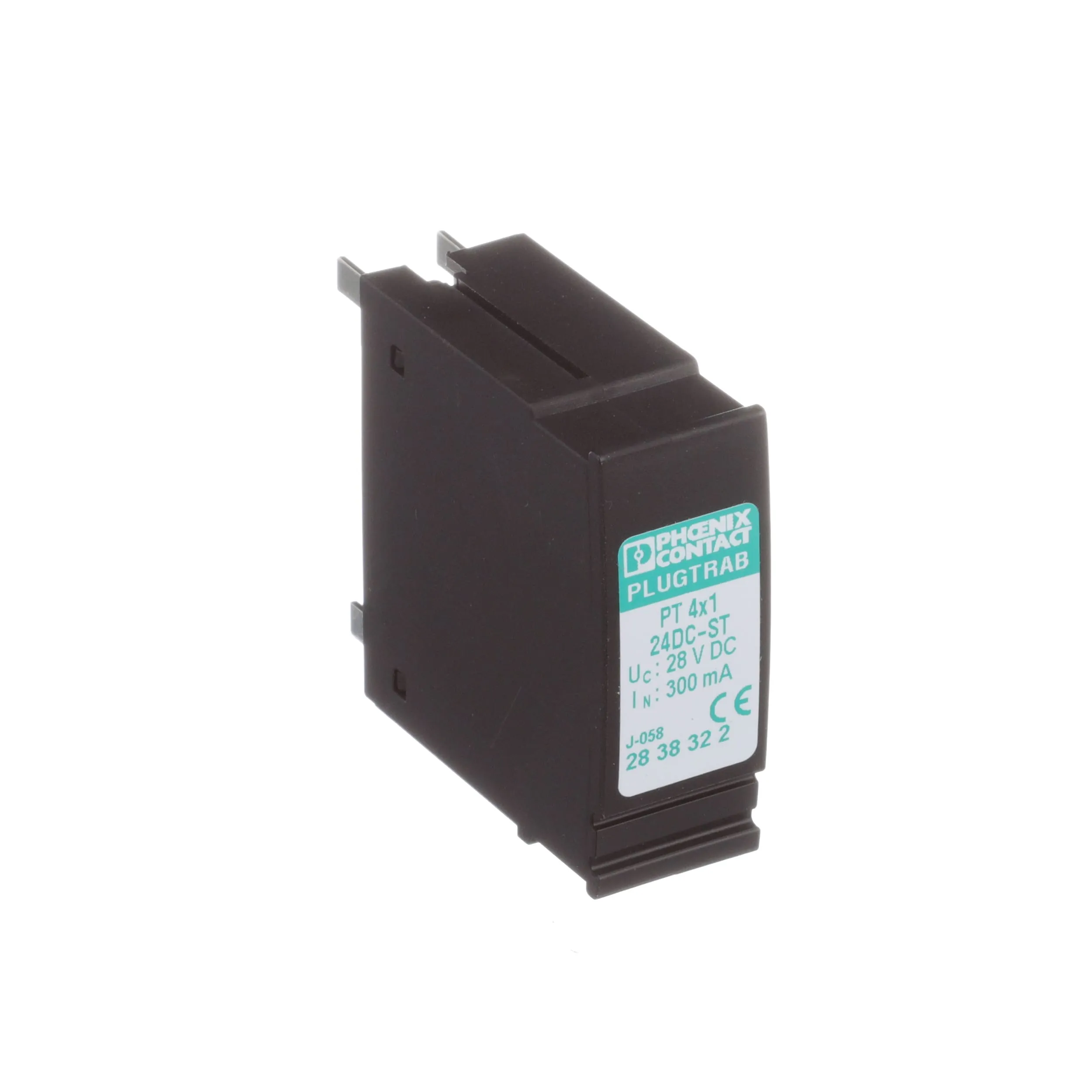

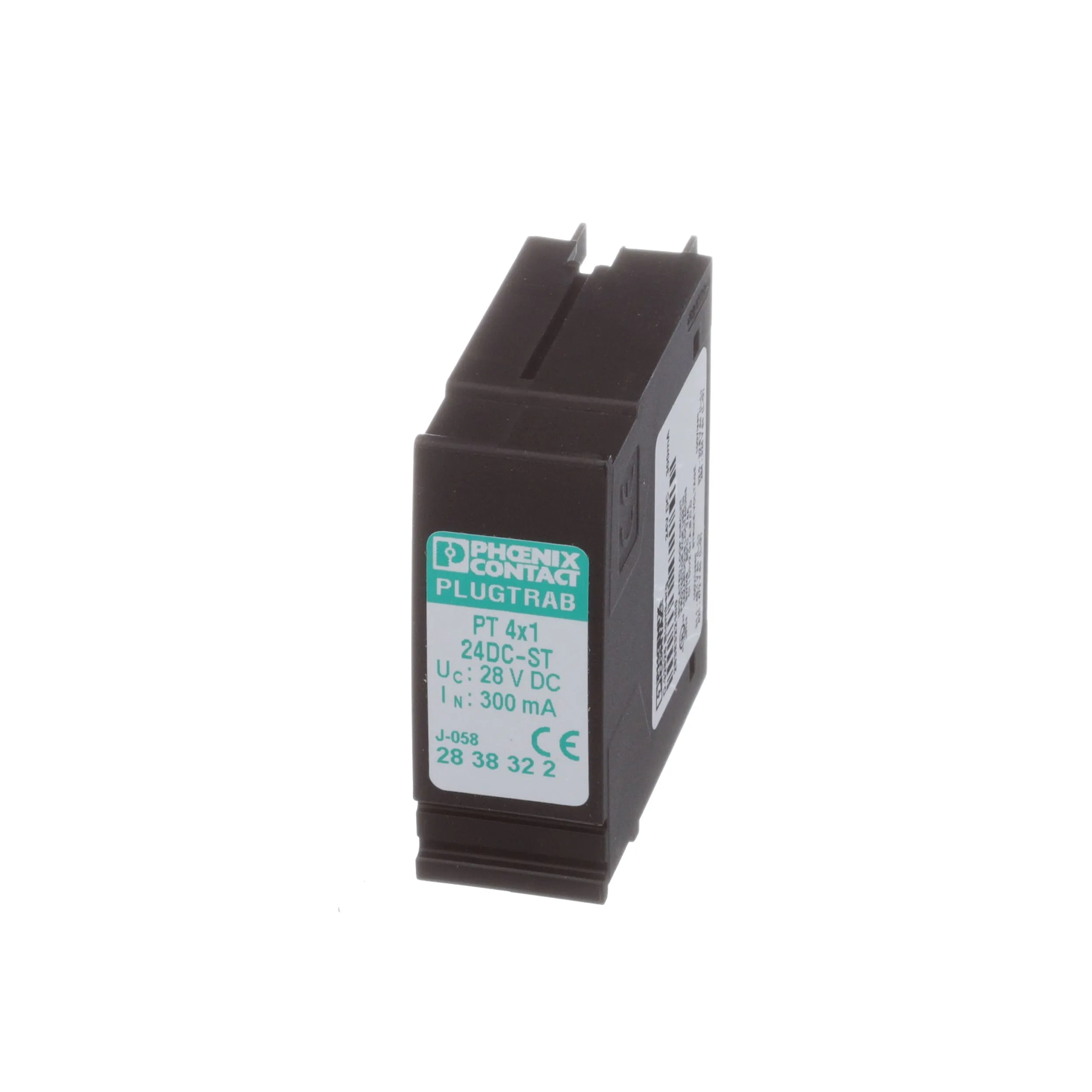

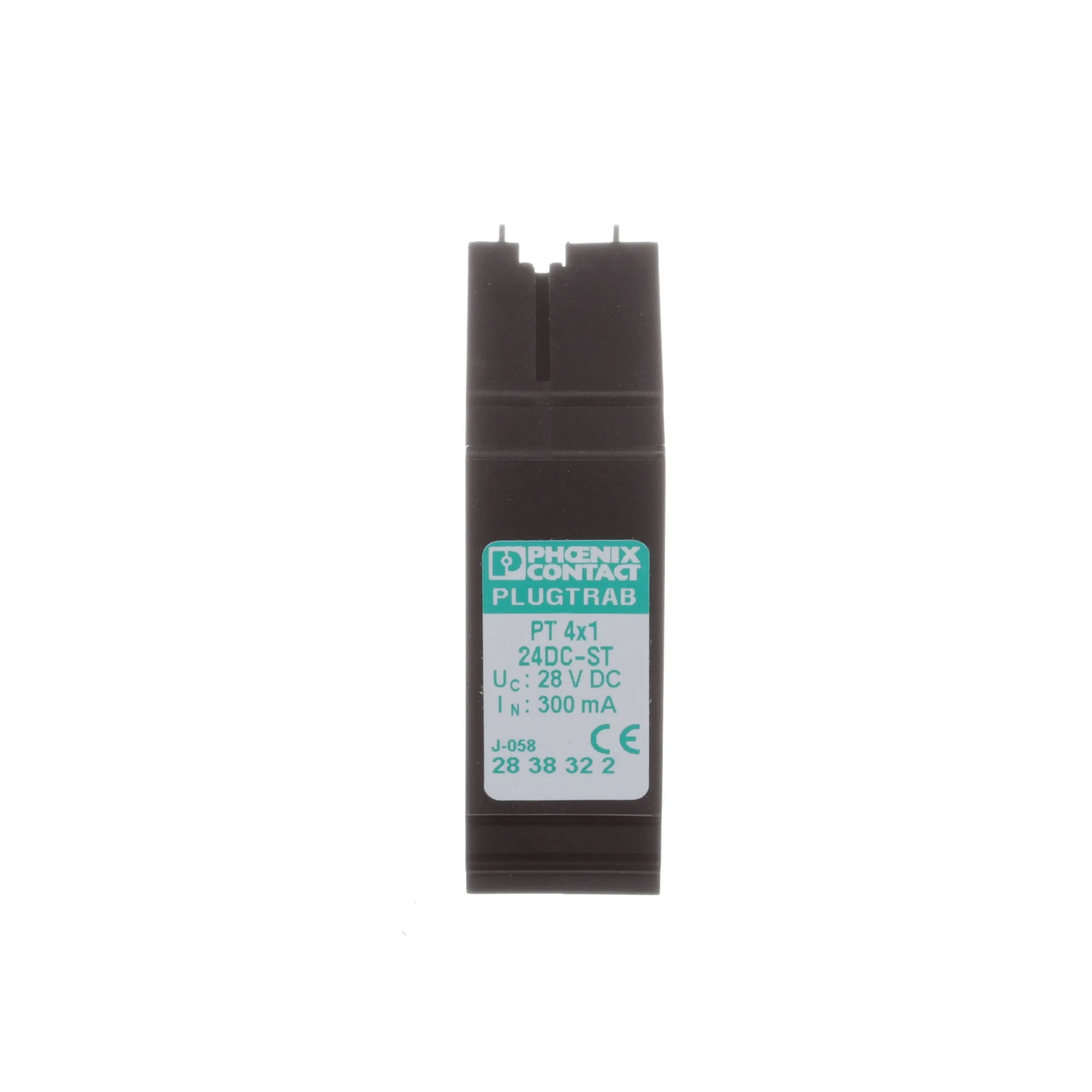

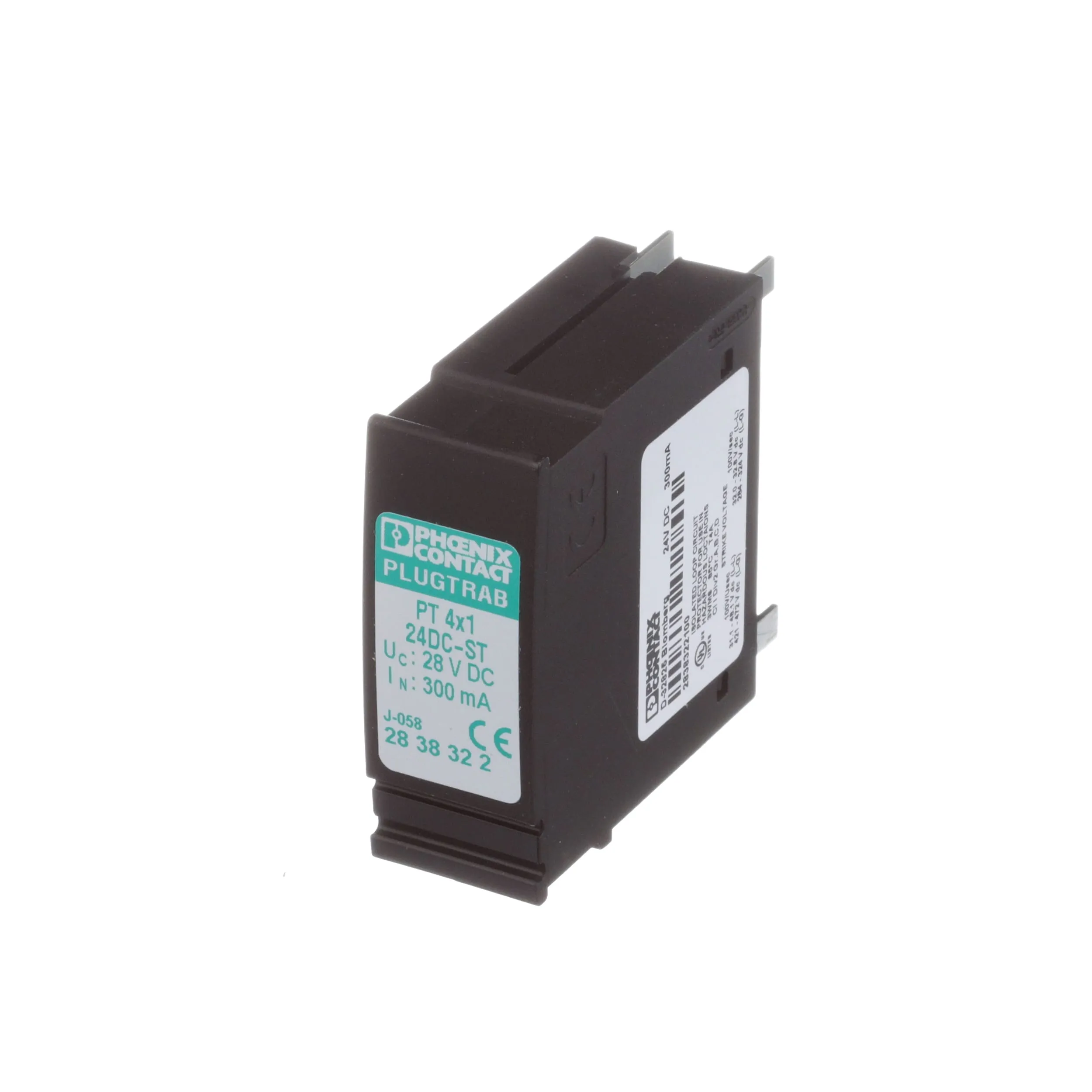

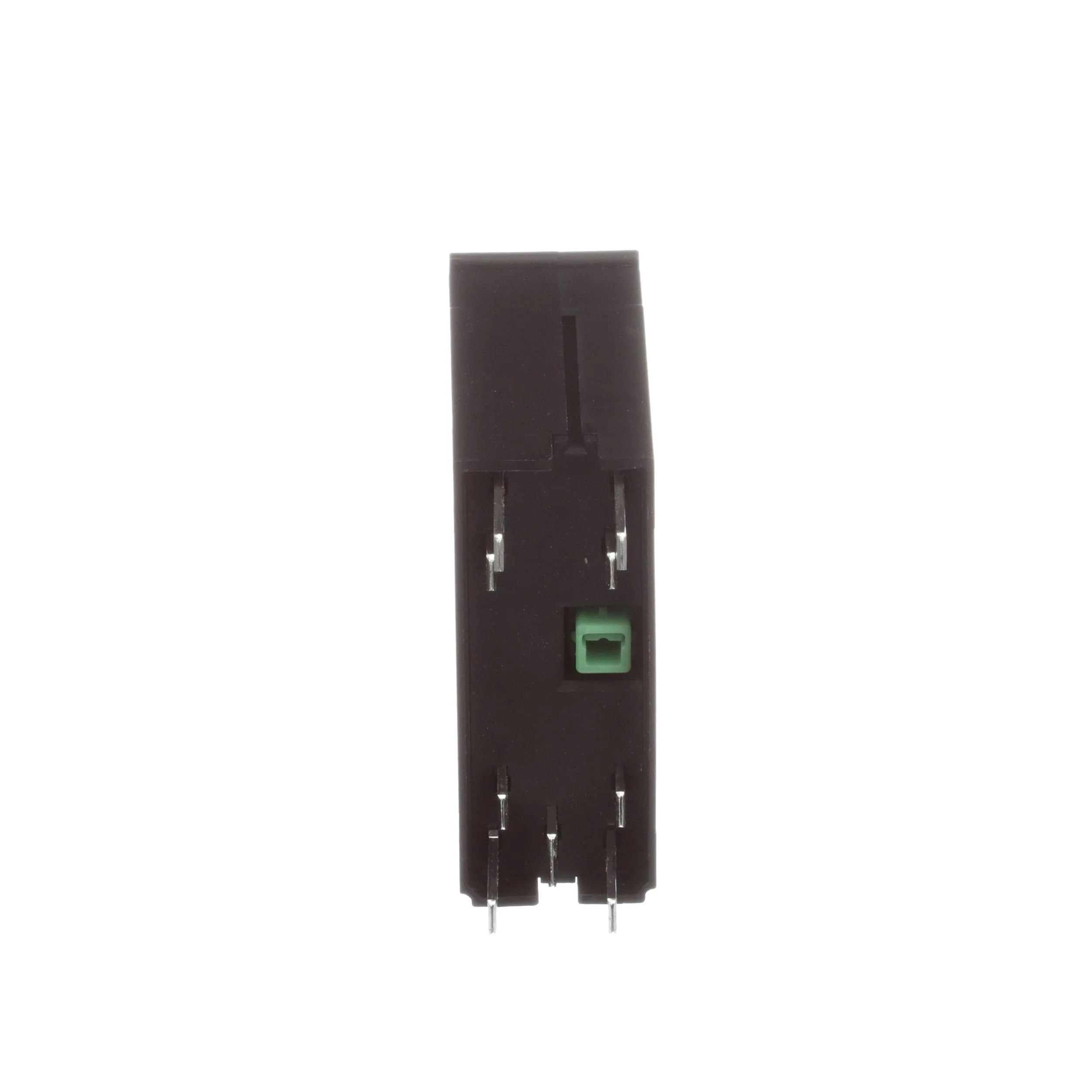

| Product Header | Protective Plug PT with Protective Circuit |
| Response Time | 1 nS (Core to Core) |
| Standards | UL Listed |
| Supply Voltage | 24 VDC |
| Termination | Screw |
| Type | Network |
| UPC Code | 4017918182717 |
| Voltage Rating | 24 VDC |
| Voltage, Operating | 28 VDC |
| Wire Size | 24-12 AWG |
Overview
The PT 4X1 is for protection of up to four discrete I/O (On/Off) signals (using a common return) in one 17.5 mm protection package.
